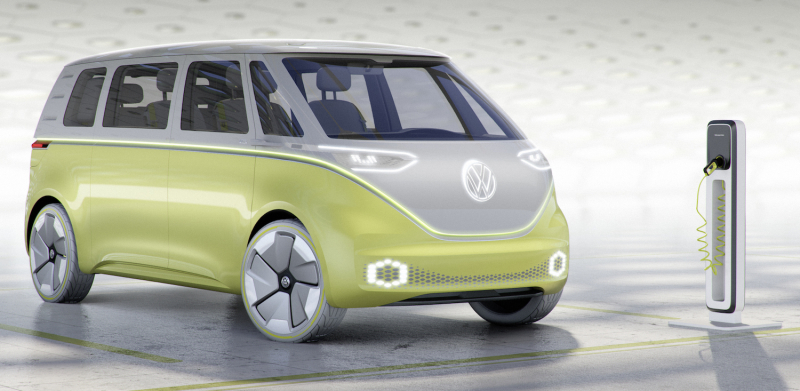

Volkswagen is presenting a fully autonomous, electric Microbus concept at the North American International Auto Show in Detroit.The I.D. Buzz is built off the Modular Electric Drive kit (MEB). With two-motor, all-wheel drive, a fully autonomous driving mode (“I.D. Pilot”) and a new generation of display elements and controls, the concept conceptually follows the new Volkswagen brand strategy.
The all-wheel drive system has a total output of 369 hp (275 kW) and an NEDC electric driving range of 600 kilometers (270 miles on a predicted US. driving cycle). One electric motor at the front axle and one at the rear each deliver a power output of 201 hp (150 kW), distributed between the two axles by an electric propshaft. The I.D. BUZZ shown in Detroit can accelerate from 0 to 60 mph in about 5 seconds, with a governed top speed of 99 mph.
The vehicle’s 111 kWh battery can be charged to 80% of its capacity within 30 minutes using the Combined Charging System (CCS) or an inductive charging interface, with a charging rate of 150 kW.
As an alternative, the battery can be charged from any conventional household outlet and at charging stations. The all-wheel drive configuration is just one of several that are conceivable. Thanks to the MEB, it would be just as easy to equip the I.D. BUZZ with a rear-wheel drive setup producing up to 268 hp (200 kW) and a smaller 83 kWh battery, depending on the region and purpose of use.
Volkswagen says that due to the MEB underpinnings, space utilization is better in the I.D. BUZZ than in any other electric vehicle. Using an extended MEB-XL platform, this concept vehicle—which is 194.6 inches long, 77.8 inches wide and 77.3 inches tall, with a wheelbase of 129.9 inches—offers an very spacious interior for its class.
The floor-mounted battery lowers the vehicle’s center of gravity and delivers ideal weight distribution. The suspension layout—including multi-link rear suspension with integrated drive units and decoupled subframes at front and rear, as well as air suspension at the rear axle using electronically controlled dampers—delivers premium class comfort, high cornering power, and ideal acoustics
Communicating with LEDs. The I.D. BUZZ communicates with its surroundings via the LED lighting at the front end. The LED headlights interactively mimic the gestures of the human eye and thus interact with other traffic. The concept vehicle masters these light scenarios:
- Parking. When all systems of the I.D. BUZZ are shut down it looks from the front as if its “eyes” are closed. When the I.D. BUZZ is parked, just a narrow, small LED strip is visible in the headlights.
- Opening. When the I.D. is “awakened”, it greets its driver and passengers with a 360-degree light show. First, the Volkswagen logos light up. This is followed by the wrap-around ambient lighting. In the final phase of this light show, the I.D. BUZZ opens its “eyes.” small LED strip is visible in the headlights.
- Driving. The Volkswagen logos, wrap-round ambient lighting, Daytime Running Lights and the LED headlights are always active while driving. As the car accelerates, the “eyes” adjust to the higher speed by adopting a more dynamic light signature.
- Automated. A distinctive feature of the fully autonomous driving mode is that the laser scanners in the roof are extended and illuminated. As the car speeds up, the LED “eyes” look ahead, giving the car a sportier appearance. In addition, the “eyes” are interactive in the fully autonomous driving mode. If the I.D. BUZZ wants to turn, for instance, the LED headlights look in the direction the car is going to turn. To top it off, if the vehicle detects people at the side of the road, it looks at them. Through this interaction, the Volkswagen alerts pedestrians and cyclists to its Interior.
In the “I.D. Pilot” mode, the front seats can be electrically unlatched and rotated so they face the rear, after the “I.D. Box” multifunctional center console is moved rearward. The seating system is flexibly designed to be like the living space at home or a lounge area. This versatility is based on a seat rail system that is integrated in the flat floor and on adjustable and folding seats.The seatbacks of the individual second row seats can be folded to form tables. At stops, the third row can be made into a bed, enabling the I.D. BUZZ to be used for overnight voyages. When the trip is resumed, clever detail solutions make travel more pleasant, such as softly padded rear side sun visors that can be moved and are designed so that a passenger can lean on them. Individually placeable cushions also underscore the cozy atmosphere of the interior, which is flooded with light thanks to its large windows and two-part panoramic roof.As soon as the driver’s seat is occupied, the steering wheel, which is retracted into the dashpad in parking mode, extends out, and the indicators and buttons on the steering wheel light up simultaneously. In parallel, the I.D. BUZZ activates the augmented reality head-up display and the tablet in the “I.D. Box.” The ambient lighting also greets the driver. Close the doors, buckle up, press the brake pedal and select a gear and the I.D. BUZZ is immediately ready to start. The concept car is shut off by the “P” button on the steering wheel. When finished, the steering wheel retracts flush into the cockpit panel.
- Touch-sensitive steering wheel (multifunction steering wheel with capacitive surfaces).
- Augmented reality head-up display.
- “I.D. Box” center console (including a tablet usable outside the vehicle).
- The steering wheel of the I.D. BUZZ does not have any spokes. The wheel, trimmed with Nappa leather, is more of an interactive touchpad. This touch-sensitive steering wheel is a new concept, which allows the driver to operate the drive modes (P, R, N and D), turn signals and various menu functions as well as settings for the head-up display via touch-sensitive areas on its surface.The outer region of the touchpad has a honeycomb-like light signature, as does the dashpad ahead of the driver and front passenger. Pressing on the illuminated VW logo in the middle of the touch-sensitive steering wheel initiates a switch between the “Drive” mode and “I.D. Pilot” mode; the steering wheel then retracts or extends accordingly.When the vehicle is being driven by someone, the I.D. Box is positioned between the front seats. In this case, the integrated tablet in the console is positioned to serve as a display and control surface for the driver and front passenger. When the driver switches to the “I.D. Pilot” mode, the entire “I.D. Box” moves towards the rear. Other console features include cupholders and a folding table. The console tablet (like the Beats speakers) is easy to unsnap and remove from the vehicle.The Volkswagen I.D. lets the I.D. BUZZ know who the driver is. The individual vehicle settings are configured accordingly, and features such as the person’s calendar are shown on the tablet. The I.D. BUZZ also knows the driver’s friends via the Volkswagen I.D. Based on this information, the car might recommend meeting with friends or suggest activities that would fit into the day’s schedule.In “I.D. Pilot” autonomous mode, the system informs the driver on the tablet about changes to the calendar, for instance. If the I.D. BUZZ passes one of the driver’s favorite shops or a favorite restaurant, the car informs the driver via the tablet about the current offerings at these personal points of interest. A new era of interactive and personalized online services is beginning with the I.D. BUZZ.Like the compact I.D. shown in Paris, the I.D. BUZZ is equipped with an augmented reality head-up display. Information such as navigation directions are projected as virtual images from 23 to 49 feet ahead of the car. The effect is astonishingly realistic. Directions are projected via augmented reality to show exactly where the driver is heading. Thanks to the head-up display, the navigation instructions are now part of three-dimensional surroundings that the driver can experience. Drivers can use the touch-sensitive steering wheel to modify the type and amount of information shown, adapting the system to their individual needs.Three levels of information density are available here:
There are no rearview mirrors in the I.D. BUZZ. Cameras and a display have taken over that function. Where there would normally be a rearview mirror, there is a screen called the e-Mirror. Here, a monitor combines data from the exterior mirror cameras on the left and right of the vehicle and from a camera that faces directly rearward. Doing away with the side mirrors improves the aerodynamics of the vehicle.
- Level 1: “Navigation,” “Speed” and “Battery indicator”
- Level 2: Level 1 plus “Phone” (in “Drive” mode) and “Local offerings” (in “I.D. Pilot” mode)
- Level 3: Levels 1 and 2 plus “Friends” along the route (in “Drive” mode) and “Messages” (in “I.D. Pilot” mode)
